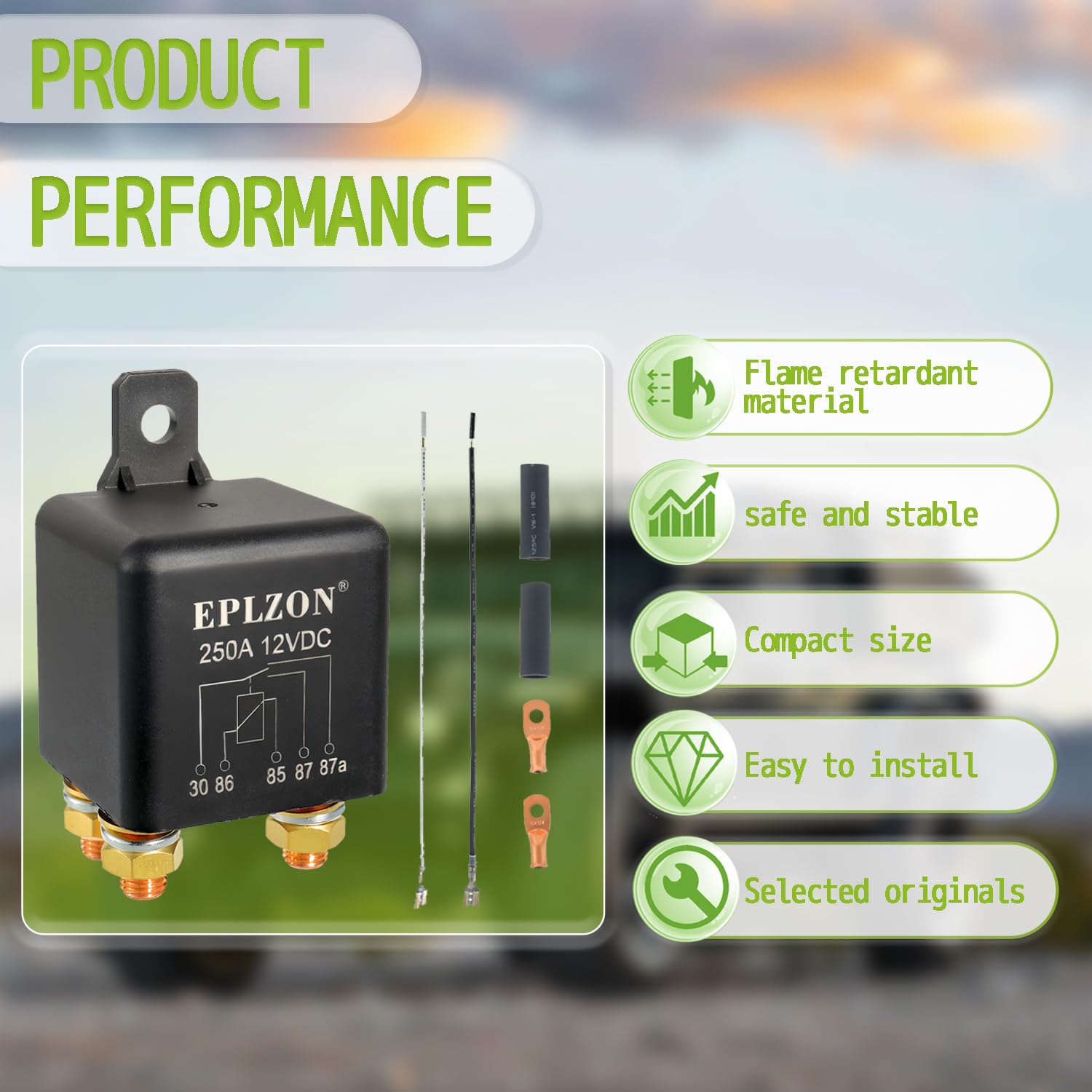

250A Continuous Duty Relay 250 Amp 12V DC 5 Pin SPST Automotive Power Starter Split Charge Relay for Truck Boat Marine RV Camper

EPLZON 5 Pins 12V 250A Split Charge Relay Switch ⭕Suitable for LED work lights, fog lights, starters, wipers, fans, speakers, central locks, alarms, electric windows, etc. Flame Retardant Material Shell：The shell is made of flame retardant and fire retardant material, which can work normally in high temperature environment. Pure Copper Coil：The details are in place, the coil winding is sufficient, the withstand voltage purity is good, the mechanical life is long, the product is stable. Silver Alloy Contact：Using silver alloy material, strong conductivity, high sensitivity, strong oxidation resistance hardness, can avoid deformation under high temperature working environment. Specifications： 🔸Color: Black 🔹Terminal Quantity: 5 PIN 🔸Nominal Voltage(VDC): 12V 🔹Max Applicable Voltage (VDC): 14V 🔸Switching Current: 250A 🔹Temperature Range: -40 ~ +90 ℃ 🔸Contact Form: Normal Open 🔹Operate Time: 15ms 🔸Release Time: 10ms 🔹Contact Form: Normal Open 🔸Contact Material: AgSnO₂ 🔹Contact Form: Normal Open 🔸Life Expectancy Mechanical: 10,000,000 Operations 🔹Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min) Packaging includes: 1pcs * 12V 250A relay 2pcs * black and white cables 2pcs * purple copper wiring terminals 2pcs * heat shrink tubing

• Materials：Internally, pure copper coils are used, with strong conductivity and low loss rate. The outer shell is made of nylon flame-retardant material, which is heat-resistant, corrosion-resistant, and highly conductive. The terminal contacts have the ability to resist welding and arc erosion, as well as stronger resistance to current shocks.
• Function: By converting small current output into large current, it acts as a current switch.
• Pin Specifications: 30-High power feed,85-Relay coil ground,86-relay coil feed(trigger wire),87-high power output(normally open contact),87a-high power output(normally closed contact）
• Application:Suitable for split charging or various types of vehicles, such as cars, trucks, RVs, boats, campers, and other vehicles that require high power.
• Packaging includes: 1pcs * 12V 250A relay+2pcs * black and white cables+2pcs * purple copper wiring terminals+2pcs
