Wall Scanner Detector Non Ferrous Metal Stud Finder AC Voltage Live Wire Wood Detect Copper With Buzzer Indication

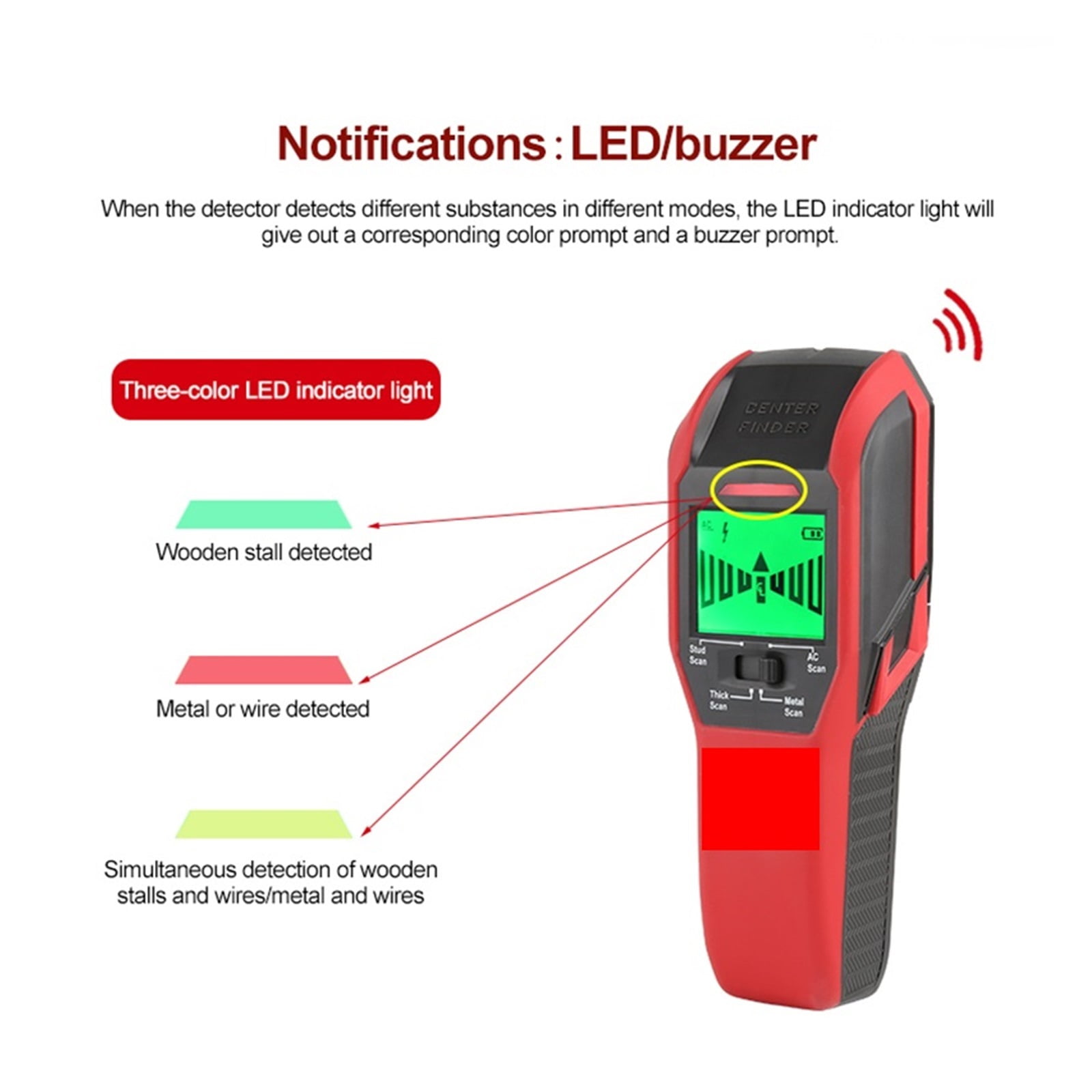

<p>Wall Scanner Detector Non Ferrous Metal Stud Finder AC Voltage Live Wire Wood Detect Copper With Buzzer Indication</p><p></p><p>Features</p><p>1.High precision</p><p>2.Audible alarm</p><p>3.Multiple detection modes</p><p>4.1 meter drop resistance</p><p>Parameter</p><p>Detect principle</p><p>Electro-magnetic induction</p><p>Detects</p><p>Wooden beam, metal object, electric wire</p><p>Metal-scan depth</p><p>76mm</p><p>Stud-scan depth (wood)</p><p>28.5mm</p><p>Thick-scan depth</p><p>(wood)</p><p>38mm</p><p>AC electric wire depth</p><p>51mm</p><p>Detect accuracy</p><p>±15mm @28.5mm depth drywall</p><p>Calibration error</p><p>alarm</p><p></p><p>Notifications</p><p>LED/buzzer</p><p>GENERAL</p><p>CHARACTERISTICS</p><p>Power</p><p>9V battery (6F22)(No include)</p><p>Product net weight</p><p>247g</p><p>Product size</p><p>170mm x 70.5mm x 38.9mm</p><p></p><p>Wall Scanner</p><p>Used to detect wood, metal (water pipes, steel bars, copper pipes), and live wires under gypsum board.</p><p>Notifications:LED/buzzer</p><p>When the detector detects different substances in different modes. the LED indicator light will give out a corresponding color prompt and a buzzer prompt.</p><p>HD backlit large screen</p><p>Easily display data in dark environments</p><p>Multiple detection modes/Precise positioning</p><p>Multi-material application (measurable metal, wire, wood)</p><p>Precise positioning</p><p>The sensor is located near the marking hole, and the center target is positioned to ensure accurate detection.</p><p>Up and down parallel fluff pad design</p><p>Add Velcro design up and down to increase the flatness of the instrument</p><p></p><p>Steps</p><p>1. Hold the holding part of UT387C with your hands, place the instrument up and down. with the bottom flat against the wall.</p><p>2. Select the detection mode. When the mode switch is moved to the far left, it is to select the first blocking Stud Scan mode, as shown in Figure 1. When it is moved to the second gear, it is to select the Thick Scan mode as shown in Figure 2.</p><p>3. Calibrate, press and hold the power button without letting go. At this time, when the instrument enters the automatic calibration process, all icons will be displayed on the LCD screen (including: "StudScan"/ThickScan"+ "Battery Power Symbol" + Metal + Target Indication Bar) until the instrument verification is completed. When the instrument is successfully verified, the green LED flashes once and the buzzer briefly sounds once to remind the user that the verification has been successful. At this time, the instrument can be moved to detect wood or other objects.</p><p>Notice:Battery don't include</p>

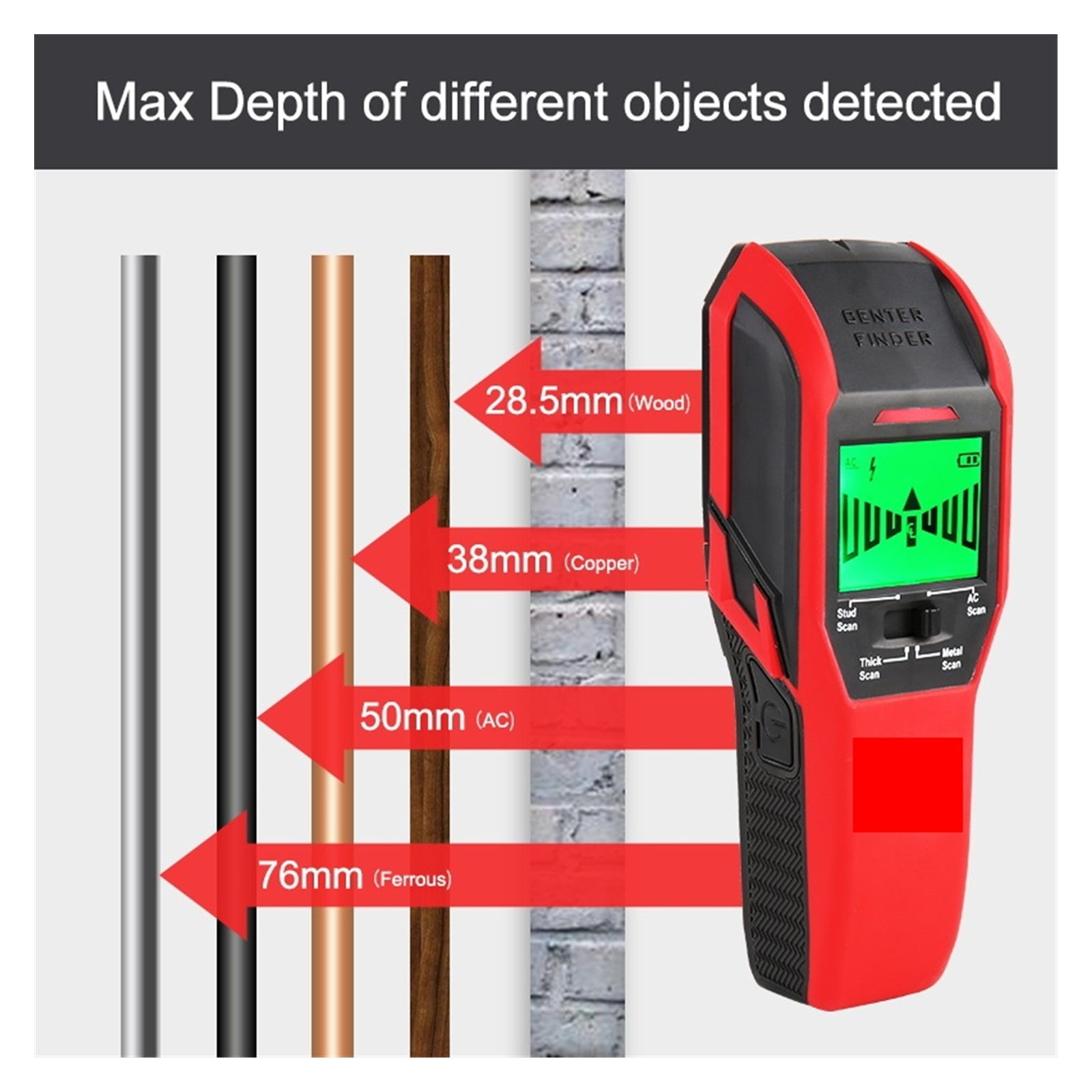

• Metal-scan depth:76mm
• Stud-scan depth (wood):28.5mm
• Thick-scan depth:(wood)38mm
• AC electric wire depth:51mm
• Detect accuracy:±15mm @28.5mm depth drywall
